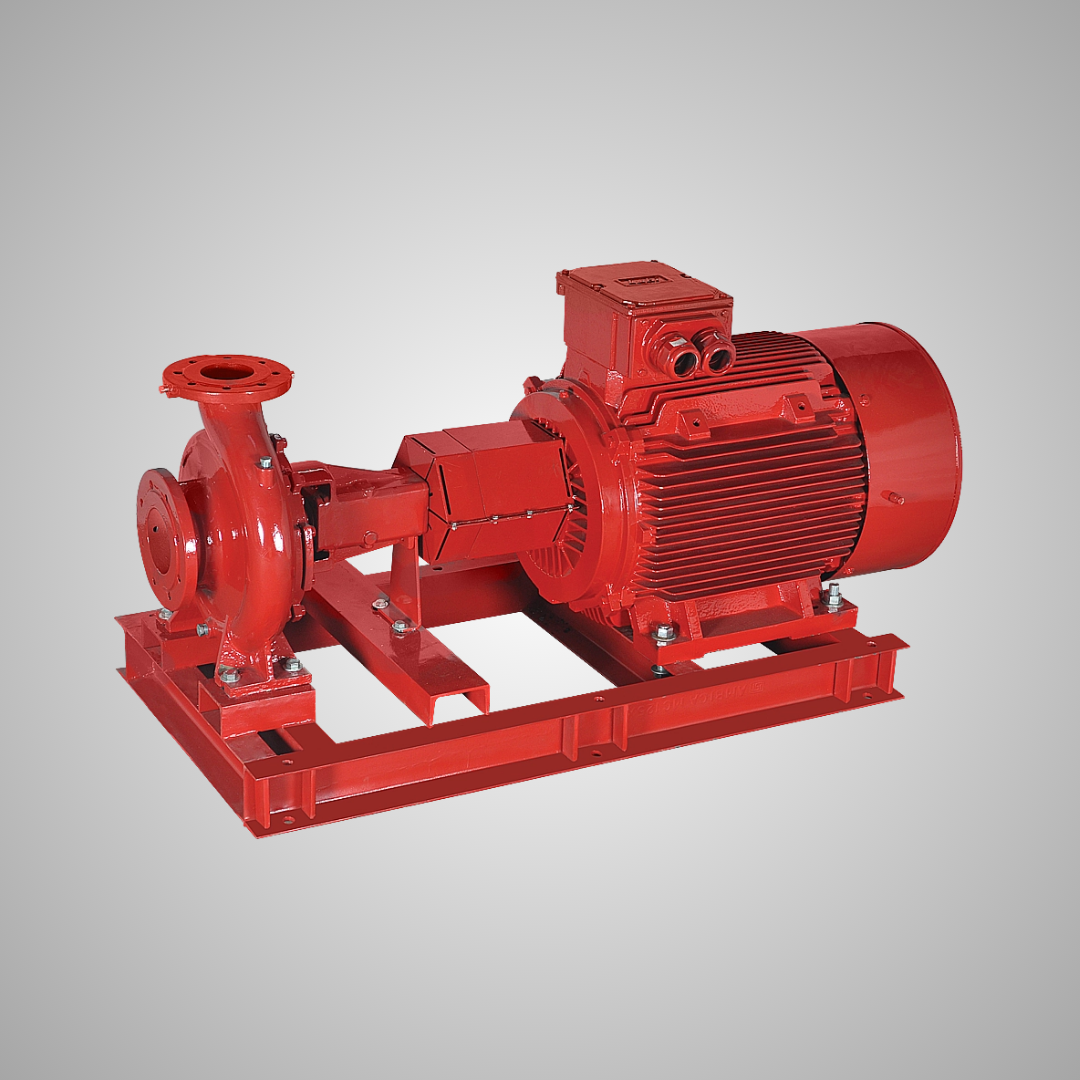

Jockey Pump​

Avinash Fire Protection Systems, we will be determined to offer quality fire protection services that are safe, reliable, and fully adhere to international standards. The Jockey Pump is one of our most important products, which is aimed at the constant maintenance of pressure within fire protection systems such as sprinkler and hydrant networks. This pump also regulates the pressure variations to ensure that the main fire pump is run efficiently and only when necessary which reduces wear and unnecessary running.

Key Role in Fire Protection

A fire pump jockey is an essential component in any modern fire suppression system. It mainly acts to fill in small pressure drops within the piping system that results due to small leaks or temperature changes. The lack of a pump means that even a small decrease in pressure would activate the main fire pump and add undue stress, which would use more energy. This pump has a constant pressure to safeguard the system as well as the facility so that it is consistent and reliable during an emergency.

This pump fire operates continuously but at low flow, keeping the system pressurized and ready for instant activation. Quick responsiveness to changes in pressure ensures that the main fire pump can only activate when an increased flow and pressure are needed which makes it an efficient and cost effective fire protection solution.

Technical Performance and Specifications

The pump under discussion is a vertical multistage centrifugal pump that is most effectively used in the fire protection system. With six stages, the pump provides a high pump pressure, ensuring consistent water delivery across sprinkler and hydrant systems. Her discharge rate of 10.8 m 3/hr (180 LPM) and a discharge head of 80 meters give it the capacity to fit medium and high-rise facilities where constant pressure is paramount.

The suction and delivery sizes of the pump are 50 x 50 mm, which will enable it to fit well with the existing systems. Its closed type of impeller design offers effective flow and minimum wear and the SIC/Carbon mechanical seal offers leakage prevention which is more reliable in constant running. This is made of a cast iron base, an industrial plastic impeller, a stainless steel shaft, and an SS 410 bowl, making it tough and thus lasting and working even in extreme circumstances.

Motor and Power Details Of Jockey Pum

This pump has a 10 HP, 2900 RPM, 3-phase, 415 V, 50 Hz AC vertical flange-mounted motor with a vertical flange design to provide dependable power to the system to maintain pressure. The motor is made to operate in ambient temperature water, hence it can be used in most of the industrial and commercial applications. It is designed in a compact structure and installed easily and the color-coated finish is designed to be corrosion-resistant as well as long-term.

Operational Advantages

A fire jockey pump offers several advantages over standard fire systems:

• Maintains system pressure continuously without triggering the main fire pump unnecessarily

• Reduces wear and tear on the primary fire pump, extending its lifespan

• Enhances the reliability of fire suppression systems in critical facilities

• Provides stable pressure for efficient sprinkler and hydrant operation

• Low maintenance requirements due to robust design and high-quality materials

Additionally, the pump is engineered to maintain pump pressure in KG, ensuring compliance with fire safety standards and providing predictable performance for safety personnel.

Applications Across Industries

This Pump can be applied in a broad application where pressure stability on fire protection systems is critical:

• Industrial plants with complex sprinkler networks

• Warehouses and storage facilities requiring rapid fire response

• Commercial complexes, shopping malls, and public buildings

• High-rise residential or office buildings with extensive piping systems

• Chemical and pharmaceutical plants where fire hazards are high

It is versatile and can be applied both in a new installation and as a retrofit application to an already existing fire safety system.

Integration and Reliability

The superior characteristics of this pump are its capacity to blend with other fire protection mechanisms. It is compatible with primary fire pumping equipment, sprinkler systems, hydrants, and control systems to form a synchronized and effective firefighting setup. Appropriate integration will provide water delivery uniformly in all zones, as much as possible protection is offered and low chances of system breakdown are reduced.

The solid construction, quality machinery, and accurate engineering of the pump make sure that it will be reliable even when it is maintained in continuous operation. There is also minimal maintenance and inspection is only required to ensure maximum performance.

Safety and Compliance

In Avinash Fire Protection Systems, we create our pumps in accordance with the global fire testing requirements. This will ensure that this pump will serve well during emergency conditions and comply with the regulatory requirements. Our solutions will ensure high levels of safety to personnel and property by providing the necessary rate of pressure and the necessary speed when it is necessary to activate the main fire pump.

Advantages of Choosing Our Pump

• Maintains consistent pressure in fire suppression systems

• Reduces unnecessary activation of main fire pumps

• Durable construction for long-term operation

• Low maintenance and operational costs

• Suitable for industrial, commercial, and high-risk facilities

• Easy installation and integration with existing systems

• Complies with international fire safety standards

• Enhances the overall efficiency and reliability of fire protection systems


Conclusion

When you invest in a Jockey Pump of Avinash Fire Protection Systems, you will be assured of having a fire safety system that is always pressurized, dependable, and ever ready to respond. Its advanced vertical multistage design, high-quality components, and precise engineering provide consistent pump pressure, optimal performance, and long-term durability. Having the ability to integrate smoothly with virtually no maintenance needs, this pump is a key element to any facility that would want to be as safe as possible and at the same time functional in firefighting. Using our solution, facility managers and safety officers will be able to provide a quick, efficient, and dependable reaction to fire emergencies in order to save lives, property, and vital infrastructure.
