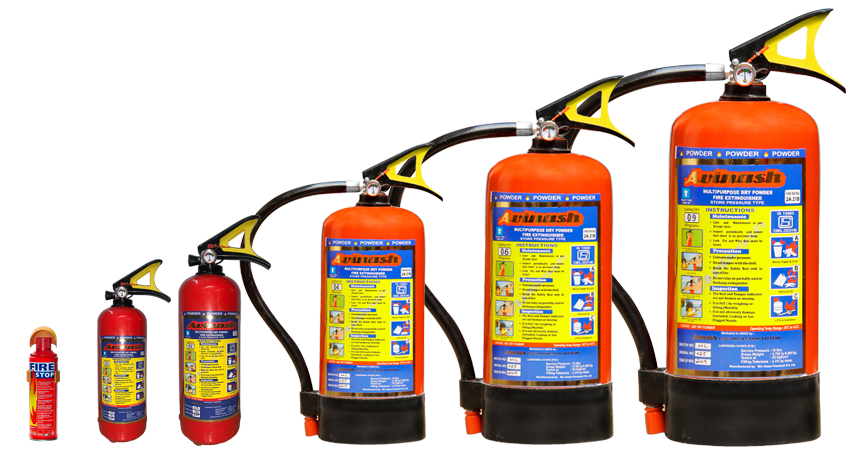

Dry Chemical Powder Fire Extinguisher
The Avinash range of high-performance dry powder extinguishers has been designed to combat modern hazards and is available in cartridge or stored pressure versions with ‘BC’ & ‘ABC’ powder options.
Dry powder is a safe and versatile extinguisher ideally suited to high-risk environments where the fire hazards are mixed. Dry powder used in Avinash fire extinguishers are non-conductors of electricity. The body of the fire extinguisher is powder-coated internally & externally for corrosion resistance and anti-scratch.
| Extinguishing Agent | Monoammonium Phosphate (MAP) (ABC Dry Powder) | ||||
|---|---|---|---|---|---|
| Suitable for Class | ABC | ||||
| Capacity (kg/lt.) | 1 KG | 2 KG | 4 KG | 6 KG | 9 KG |
| Outside Diameter (mm) | 86 | 108 | 150 | 160 | 180 |
| Hose/Nozzle | Only Plastic Nozzle | Only Plastic Nozzle | PVC Hose with Nozzle | PVC Hose with Nozzle | PVC Hose with Nozzle |
| Design as per Standards | CE / EN-3 / IS:15683 | CE / EN-3 / IS:15683 | CE / EN-3 / IS:15683 | CE / EN-3 / IS:15683 | CE / EN-3 / IS:15683 |
| Discharge - Quantity | More than 85% | More than 85% | More than 85% | More than 85% | More than 85% |
| Duration/Time (Sec.) | 8 to 10 | 9 to 12 | 12 to 15 | 15 to 20 | 23 to 30 |
| Range/Throw (Meter) | 2 to 3 | 2 to 3 | 4 to 5 | 4 to 6 | 6 to 7 |
| Operating Temperature (°C) | -10 to 55 | -10 to 55 | -10 to 55 | -10 to 55 | -10 to 55 |
| Fire Ratings | 1 A 8 B | 1 A 8 B | 1 A 13 B | 2 A 21 B | 2 A 34 B |
