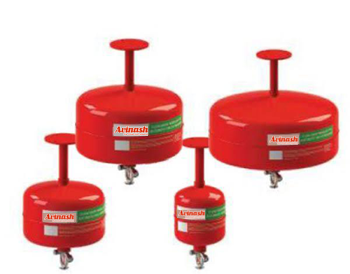

Auto Safe Automatic Fire Extinguisher
Avinash presents modular type ABC Clean Agent Gas along with a range of gaseous automatic fire extinguishers. Avinash Automatic ABC Dry Chemical Powder or Clean Agent Gas & other gaseous fire extinguishers is a technological breakthrough that provides automatic fire protection for electrical and electronic flammable liquids and a variety of other risks.
We also make the unit to be at a reasonable height above the risk area to ensure that heat triggers the system immediately. We examine ceiling structure, ventilation flow and areas of hazard and then finalize placement. This assists us to achieve complete coverage and dependable activation even in real time fire conditions.
We also ensure that the mounting structure is robust to sustain long term usage without vibration and displacement. All installations are checked to be aligned and pressure ready before final commissioning.
Auto Safe is an automatic extinguisher, which does not require any external source of power to operate. It can be utilized for local applications or total flooding of hazards.
The modular-type extinguisher is based on sprinkler technology. Unlike the sprinkler, the nozzle is gas-tight. The release temperature can be adjusted to suit prevailing conditions.
These extinguishers are most ideal for the protection of computer areas, ATM centers, server rooms, fuel and flammable liquid storage, oil fill-in stations, transformers, automobile garages, marine engines, paint and varnish booths, welding benches, domestic gas storage (particularly for hotels, etc.), and where water damage can not be tolerated.
Mechanism and Process of Work of Automatic Fire Extinguisher
This system has a working mechanism that is designed to be automatically operated without external power source. We design the system to sense an increase in temperature in the surrounding environment and go off immediately the temperature threshold is achieved.
The sealed nozzle is opened when activated and the extinguishing agent is released onto the fire source. This guarantees real time suppression without manual suppression. We create the discharge pattern such that it is able to cover the largest area of risk.
The system is independent, and therefore it will still protect the area when the electrical supply fails in case of an emergency. This renders it very dependable in the sensitive environments.
The System has application in the following areas
This system is offered by us in a broad spectrum of high-risk settings in which response to a fire is important. It is particularly appropriate in places where water-based suppression systems can create damages or are inappropriate.
The typical areas of use are:
- Data centers and server rooms
- Switch rooms and electrical control panels
- Chemical storage area and fuel storage
- Banking equipment and ATM centers
- Workshops and machinery units in industries
- Paint booths and storage of flammable liquids
- Hotel kitchen areas and gas storage areas
We make sure that every installation is tailored according to the nature of risk and environmental factors of the location.
Benefits of having an Advanced Modular Technology
In critical situations, our fire protection solutions are meant to perform at an excellent level. The system has several working benefits that render it very useful in the current fire safety needs.
Another product that we offer is a modular fire extinguisher system that can be deployed flexibly in various kinds of hazard areas. This enables us to have a focused protection in restricted or dangerous locales.
Key advantages include:
- Automatic activation with no human intervention
- Excellent electrical and liquid fire suppression ability
- No harm to delicate electronic devices
- Small size that can be installed on ceilings
- Stable operation in continuous monitoring situations
Each solution that we offer is both of high standard in terms of safety and performance.
| Capacity | Propellent | Working Pressure (kgs/cm²) | Testing Pressure (kgs/cm²) | Area Protection | Volume Protected | Hanging Vertically Above Risk | Operation Time in sec. | Approx. Net Weight Gross | Extinguising Agent |
|---|---|---|---|---|---|---|---|---|---|
| 2 KG | Nitrogen | 7 To 10 | 35 | 1 to 1.5² | 3 m² | 1.5 m | 8-10 | 3.8 | Powder/Clean Agent Gas |
| 5 KG | Nitrogen | 7 To 10 | 35 | 3.5 To 4m² | 8 m² | 1.5 to 2m | 10-15 | 8.5 | Powder/Clean Agent Gas |
| 10 KG | Nitrogen | 7 To 10 | 35 | 7 To 8m² | 15 m² | 1.75 To 2.25 m | 15-20 | 15 | Powder/Clean Agent Gas |
| 15 KG | Nitrogen | 13 To 15 | 35 | 8 to 10m² | 20 m² | 2 to 3 m | 18-23 | 20 | Powder/Clean Agent Gas |
Utilization Temperature: 57°c to 107°c
Technical Date Construction
Automatic powder & clean agent gas fire extinguishers mainly consist of MIG-welded M.S. bodies with 2 mm CRC sheets on the upper part, which are fitted with adapters or flanges for fixing on ceiling walls. And below part fixed automatic release The nozzle, based on sprinkler technology, unlike the sprinkler nozzle, is gas-tight. The release temperature is adjusted with a sprinkler imported bulb set at 57°C or 680°C or special temperatures according to specific requirements, and an imported pressure gauge is fitted for instant verification of the reliability of every unit.
This extinguisher is presently available in 4 sizes:
The nozzle is specially designed to give more than 99% discharge. Together with orifice characteristics to adequately cover fire risks with a scattering cone of 400 to 450 degrees.
2, 5, 10, and 15 kg with either wall or ceiling mounting. Extinguishers of higher capacities and with special mounting brackets can also be offered.
Design Construction Strength Engineering
In Avinash Fire Protection Systems, we also pay much attention to powerful engineering design in order to guarantee long-term performance and durability. We build our extinguishing systems with high quality materials that are resistant to pressure, changes in temperature and environmental pressure.
We adopt corrosion-resistant metal or body and exact-engineered components that guarantee smoothness in the activation. Every unit is tested on a number of occasions prior to deployment to make sure that it can be reliable in times of emergencies.
We also make sure that the system design is easily checked and maintained without affecting the areas where it is used.
Maintenance and Performance Assurance
The system needs regular maintenance to make sure that it is fully functional during its lifecycle. Our maintenance support is organized to maintain a steady level of reliability and performance.
We provide maintenance services such as:
- Periodic monitoring of pressure levels
- Verifying nozzle condition and integrity of sealing
- Checking of temperature sensitive parts
- Housekeeping and dusting of the housing units
- Controlled experiments testing functionality
We make sure that all systems we install are kept working efficiently without chances of failure. We also offer technical assistance to our team to support clients to stay safety ready in the long term.
Quality Compliance and Safety Standards
Our design and manufacture of all our systems are on the international fire safety standards. All the units are subjected to controlled conditions to make sure that they operate safely and reliably in case of emergency.
We also make sure that the electrical, chemical and mechanical risk areas are in accordance with the industrial safety laws. This will enable us to offer reliable protection system to both industrial and commercial purposes.
The quality control process we have ensures that all systems that come out of Avinash Fire Protection Systems are of high performance.
Reasons to Select Avinash Fire Protection Systems
Our mission is to provide high-technology fire protection systems that integrate innovation, safety and reliability. At Avinash Fire Protection Systems, we are concerned with creating lasting relationship with our clients through quality and professional service.
We also provide superior suppression options like the modular type fire extinguishers which are created in the industrial and commercial high risk settings. Such systems improve the general fire safety because they offer more specific protection in areas where it is most required.
Our strengths include:
- Engineering and design of expert systems
- Quality tested fire safety products
- Tailored installation to each location need
- Quality maintenance and after sales
- Good emphasis on safety compliance and performance
Advantages
- Keeps guard and extinguishes fire quickly and efficiently, especially in those places where fire could cause extensive damage if not detected and extinguished in time.
- Hazard-free cleaning agents keep articles safe and intact in case of fire.
- Provides concentrated fire protection for vital equipment.
-
What kind of fires can this system handle?
We engineer the system to effectively handle electrical fires, flammable liquids, and general fire risks depending on the extinguishing agent used.
-
Is regular maintenance required for this system?
Yes, we recommend periodic inspections to ensure pressure levels, nozzle condition, and activation components remain in optimal working condition.
-
Can the system be customized for different environments?
Yes, we customize installation height, activation temperature, and system configuration based on the specific risks and layout of your facility.
-
Is it easy to integrate with existing fire safety systems?
We design our systems to integrate seamlessly with existing fire protection infrastructure, ensuring enhanced overall safety without major modifications.
