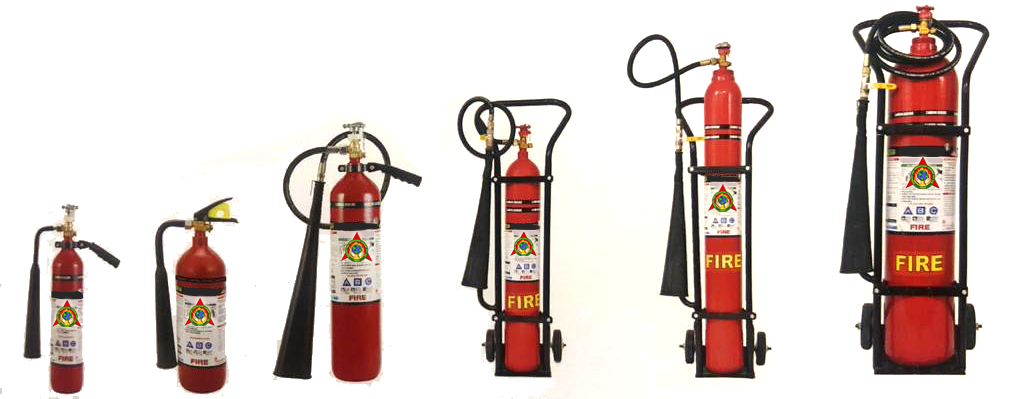

Carbon Di-Oxide Fire Extinguisher

Avinash brand CO₂ fire extinguisher are manufactured as per IS:15683 (imported/Indian Seamless Cylinder) upto 45 kg. capacity, CO₂ type fire extinguisher are suitable for 'B' and 'C' class fires-inflammable liquids, gaseous and electrical fire, oil spillages etc. Ideal for live and delicate machines, flammable liquids and Gases.

Capacity	CO2 2 Kg	CO2 3 Kg	CO2 4.5 Kg	CO2 6.5 Kg	CO2 9 Kg	CO2 22.5 Kg
ISS No.	15683	15683	15683	15683	15683	15683
Extinguisher Media	CO2	CO2	CO2	CO2	CO2	CO2
Capacity (kgs.)	2	3	4.5	6.5	9	22.5
Discharge Time(sec.)	9	14-20	18-24	10-30	12-36	20-60
Working Pressure (kgf/sq.cm.)	60	60	60	60	60	60
Dimension (mm) (dia)	108±10 mm	140	140	140	140	140
Dimension (mm) (wd)	350	350	350	350	350	350
Dimension (mm) (ht)	450	450	695	950	1250	1135
Operation Method	Upright	Upright	Upright	Upright	Upright	Upright
Charged Weight Kgs. (approx.)	12	12	18	20	33	66
Temperature range	-22 to 55	-22 to 55	-20 to 55	-20 to 55	-20 to 55	-20 to 55
Type of Fire	B and C	B and C	B and C	B and C	B and C	B and C
Discharge Hose	Bend Horn	Bend Horn	1 Mitr.min	2 Mitr.min	3 Mitr.min	3 Mitr.min
Discharge %	95	95	95	95	95	95
